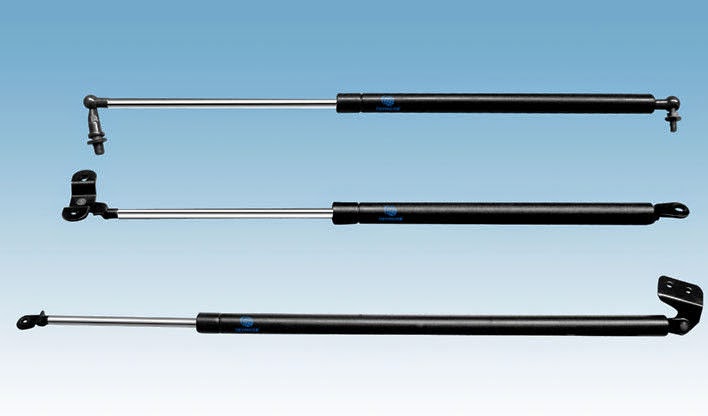

Tailgate Gas Strut

Tailgate Gas Strut with high-pressure gas as a driving force throughout the work, to avoid affecting reach places , with cushioning , maximum than commonly used functions, easy to install , safe to use , no maintenance , durable and do not leak . Tailgate Gas Struts , widely used in automotive , tool and so on. Heavy-duty gas shocks gently swinging their tailgate open it while you load your car remains open. It does not swing back to hit you unexpectedly. Easily slight inward pressure and quick release locking mechanism to promote close your tailgate .
Tailgate Gas Strut Specifications1)simple fitting;
2)compact construction;
3)intuitive operation;
4)especially convenient.
The Tailgate Gas Strut features:
1, Gas: Nitrogen filled inside.
2, Color : black,silver,or as clients
3, Quality: We can provide fatigue test report. Our products can open and close 100,000 times, No oil leak.l
4, When the gas spring is up and down, it's smooth operation without noise.
5, Safe and easy installation.

Seat Gas Strut

Seat gas strut has a nitride plated piston rod and epoxy paint treated cylinder. Our Seat Gas Strut series are covering chair,bus chair,meeting chair,office chair, Chamber chair,etc, and very popular in many countries. The state of the art technique and qualified carton steel materials, I am sure our seat gas strut would create remarkable reputation and return for you.

Seat Gas Strut Specifications

1. High quality

2. Competitive price

3. Silence when moving

4. The gas spring is up and down smoothly

Seat Gas Strut Advantage:

1) We are one of the most professional manufacturers in China.

2) Provide all kinds of gas strut for seat

3) According your drawing or dimension

4) High quality with competitive price

5) Approval of TS16949 quality system

6) Fast delivery

7) Excellent paint surface

8) We will reply your inquiry on the first time.

9) The measure of this table only offer consult, particular measure according the design demand of the customers

Part Number :JKQ10-22-1

Rod Dia. :10mm

Tub Dia. :22mm

Stroke   : 50mm

Extended Length: 150mm

Threads : M10x1.0

Force Range : 50~400N

If you want to get more information,please visit our website:

http://www.yulueasylift.com/product-Seat_Gas_Strut_295.html

Hood Gas Strut

The Hood gas strut use to high pressure insert gas for power, in the whole work, avoiding the impact of reach the place , has buffering, the biggest superior to common features easy installation, use safety, no maintenance, durable, no leakage gas. It is widely used in Automobile,toolbox,etc.

Car Hood Gas Strut Specifications

1)simple fitting;

2)compact construction;

3)intuitive operation;

4)especially convenient.

Overbed table gas spring

Overbed table gas spring is special and used for overbed table! To actual consumer demand, at the time of the patient on bed using overbedtable, the patient will not be squashed when the bed is raised high, as overbedtable will automatically rise. Ningbo Yulu Gas Spring Co., Ltd supplies high quality Overbed Table Gas Spring, If you need Overbed Table Gas Spring, please email us . We will send our catalogue and quotations up on your detail requirements.

rigid locking gas spring

Compression rigid locking gas spring,this kind of rigid locking gas spring is mainly used for supporting the industrial machines,medical treatment equipment ,chair angle and  table height adjusting etc.  Liquid oils by segregation in the piston and piston is airtight between piston rod, the gas in isolation, open valve piston behind after the piston rod downward motion, make on oil cavity occupies change size, through float by compressed gas piston makes, when the piston rod movement in any one place, suddenly close the valve, the pistons before liquid oil was closed after the rigid, so no into the valve open stretching for stretch under rigid locked. When receiving the outside pressure, the liquid oils piston, piston, also initiated a floating compressed gas, any gas in compression condition will not show rigidity.

Controllable gas springs

Controllable gas springs can be used for adjusting the height of massage chairs' leg cushions. In a stretch rigid locked adjustable controllable nitrogen on the basis of the piston and isolation plug in between, add a fixed float valve, when the piston rod suddenly by the piston to the pressure, the liquid oil also subsequently behind presser, then suddenly backward floating valve pressure closure of the piston behind the liquid oil also presents the rigid, so this controllable adjustable nitrogen in stretching and compression two-way all can present rigid locked state.

Our lockable springs fall into three main categories:

gas springs with elastic locking

gas springs with locking in the extension mode.

gas springs with locking in the compression mode.

Controllable Gas Spring

The Controllable Gas Spring is also used in health care equipment and other typical functions that use gas springs include counterbalancing, lifting, lowering, extending and retracting. Hydrocarbon segregation compression rigid locking gas spring .Liquid oils by segregation in the piston and piston is airtight between piston rod, the gas in isolation, open valve piston behind after the piston rod downward motion, make on oil cavity occupies change size, through float by compressed gas piston makes, when the piston rod movement in any one place, suddenly close the valve, the pistons before liquid oil was closed after the rigid, so no into the valve open stretching for stretch under rigid locked. When receiving the outside pressure, the liquid oils piston, piston, also initiated a floating compressed gas, any gas in compression condition will not show rigidity.

Non-Locking Gas Spring

Non-Locking Gas Spring is to point to in a certain range change gas spring gas accumulator cavity volume, to change the internal pressure pressure size purpose so that at the piston rod fan-out force value change. This kind of gas springs adapt in those needs precise force value and always change gas spring force value situations.
Non-Locking Gas Spring is applied in various kinds of modern storage rack, printing machinery. Special seal, piston rod and outer tube together;Make up of a dependable seal system, which enjoys such advantages of big lift but small lift change;Steady operation and convenient installation as compared with the mechanical spring.

Lockable gas spring

Lockable gas spring also named as locking gas spring or controlable gas spring, it's incorporates a mechanism to enable the rod to be locked at any point in its travel. This mechanism is actuated by a plunger that protrudes from the rod. When this plunger is depressed the rod is free to operate as normal. When the plunger is released, which may be at any point in the stroke, the rod is locked in that position.  Lockable type gas spring is often use for medical equipments, fitness equipments and seats. Lockable gas spring including Directional point two-way output and Hydrocarbon segregation lockable gas springs . Directional point two-way output gas spring in the valve body type piston had added to individual valve plate to make it more have common compression strut springs and compression rigid locking gas spring dual characteristics of will make its application range is more extensive. Hydrocarbon segregation  lockable gas springs are a common outer pipe, two end controllable nitrogen assembled together with special nitrogen, it applies to some specific need two-way adjusting equipment, according to specific need can be made two side different itinerary, play speed and teams, concentrated force one point of control flexible is simple, convenient in installation.

Rigid locking gas springs

Rigid locking gas springs,Hydrocarbon segregation two-way, Floating every tucked in one side of the piston, piston rod and liquid oils were floating every plug isolated in the part of the piston rod and pistons for a period of airtight tube cavity and air Spaces in front of every plug, open valve because oil chamber volume change, push forward between plug, lie between plug stress compressed air, When the piston rod movement in any one place suddenly close the valve, the pistons at the bottom of the liquid oil was closed after a rigid.

Locking Gas Springs

Locking Gas Springs.Types of flexible, rigid in tension and rigid in compression lockable gas springs. Locking gas springs are available in 23 in. to 28 in. body dia. with 34 lbs. to 270 lbs. force and release valves to reduce force. Locking gas springs are suitable for chair backs, seat height adjusters, physically disabled equipment, hospital beds, aircraft, coach and rail seat recline control, wheel chair reclines, support systems and operating, massage .
If you want to get more information about Locking Gas Springs ,please visit our website:
http://www.yulueasylift.com/

Fitness Equipment Gas Spring

The gas spring also has found applications in fitness equipment. For instance, it can be applied to gradient adjustment of running machines, pedal structure of treadmills, and chairs adjustment of integrated fitness equipment.

TYPE: JKQ10/22-001

piston rod diameter(d): φ10

tube diameter(D): φ22

stroke(S): 92

extended length(L): 294

force(F): 350

If you want to know more models of Fitness Equipment Gas Spring.please visit our website:

http://www.yulueasylift.com/product-fitness_equipment_adjustable_gas_spring_124.html

Stainless Steel Gas Springs

Stainless Steel gas springs are ideally suited for harsh environment applications such as those found in the food industry, marine use, chemical industry. They offer high corrosion resistance in todays demanding applications.
Recommended installation position piston rod downwards
Manufactured from high-quality stainless steel
Complimentary range of stainless steel mounting brackets
Filling medium: Nitrogen oil
Working Temperaure range -30°C to +80°C

Miniature Gas Spring

Miniature Gas Spring is suited to all types of applications in which loads must be lifted or lowered. Gas springs assist the muscle power and provide controlled motion for lids, hoods, flaps etc.With their integral grease chamber they provide a reduced break away force, less friction and an excellent service life.
dia of tube:12mm  dia of piston:4mm
Force Range：10 - 150N
Stroke Range：20 - 100mm
Damping Zone Length：10mm
